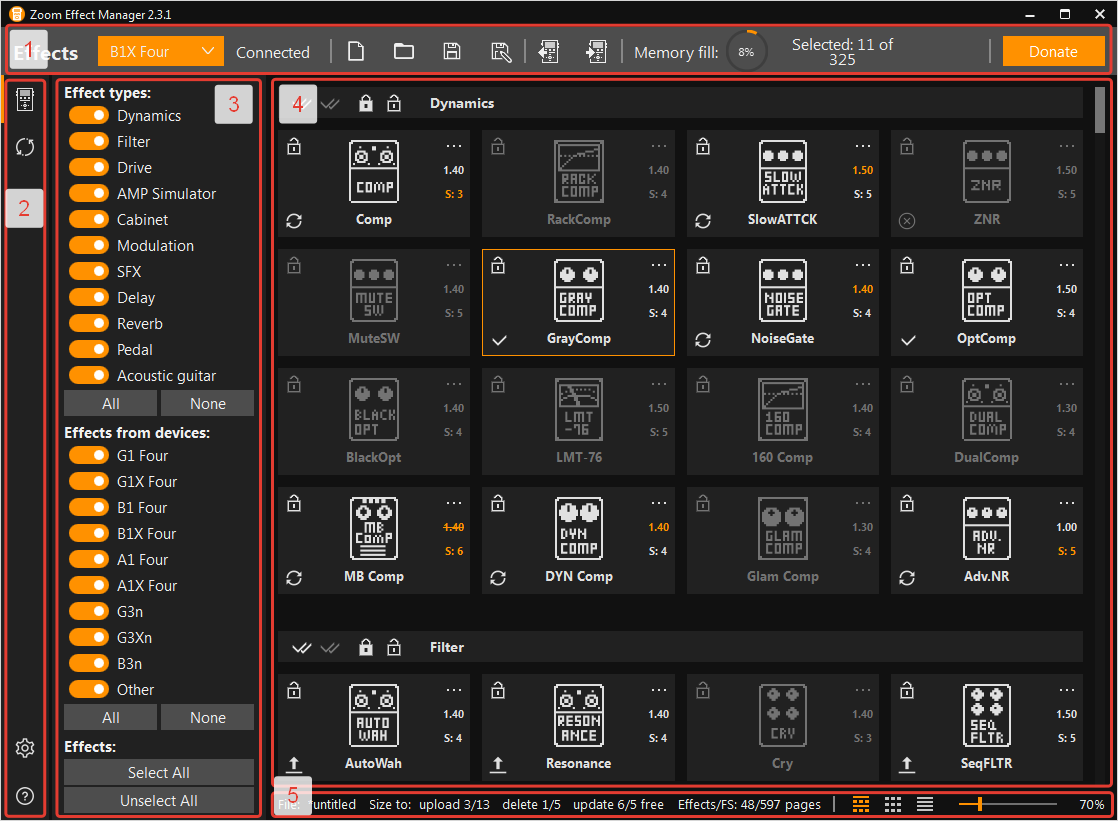

The program window contains 5 areas:
1. Top panel
2. Side panel
3. Effect filters
4. Effects area
5. Bottom panel
1. Top panel
 | Title of the current section |
 | Select the device model, when connected, the model is automatically selected and highlighted |
 | The device's connection status: "Connected" or "Not connected" |
 | "New (Ctrl+N)" button - creates a new empty effects list, resets the effects list file name |
 | "Open (Ctrl+O)" button - opens the effects list file |
 | "Save (Ctrl+S)" button - saves the effects list to the current file, if the file is unknown, a file selection window will open |
 | "Save As (Ctrl+Shift+S)" button - saves the effects list and selects the file to save to |
 | "Import list of installed effects from device (Ctrl+R)" button - reads the effects list (supports the MS-50g, MS-60B, MS-70CDR, and all second-generation effect models) |
 | "Write effects to device (Ctrl+W)" button - writes effects in both normal mode and firmware update mode. If writing in the current mode is not available, a message will be displayed informing you of the mode switch |
 | Memory usage bar in % and a counter for selected effects |
 | The "Donate" button opens a page on the program's website with donation links |
2. Side panel
 | The button opens the "Effects" section - the active section is highlighted by a colored bar on the left |
 | The button opens the "Firmware Change" section |
 | The button opens the "Settings" section |
 | The button opens the "About program" section |

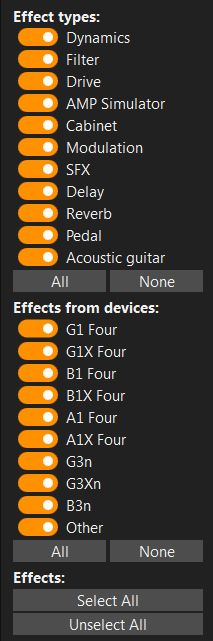

3. Effect filters
 |
There are two filter groups: by effect type and by the presence of an effect in a specific model The "All" and "None" buttons enable or disable all filters in their group. The "Select All (Ctrl+A)" and "Unselect All (Ctrl+Z)" buttons select or unselect all visible effects, the state of hidden effects remains unchanged |
4. Effects area

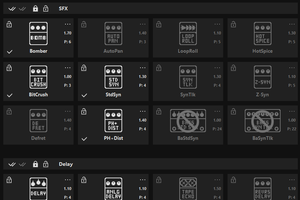

Effects can be displayed in 3 modes:- effect icons grouped by type

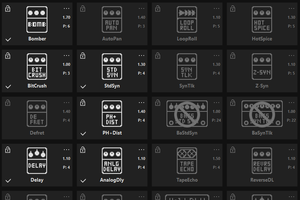

- effect icons in a general list

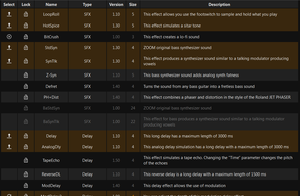

- table mode
 |
 |
 |
- select/unselect all effects in a group (except for locked ones)
- lock/unlock all effects in a group
In the table mode there are no effect icons, but there is a description of all effects at once
The effect icon contains the following elements:
1. effect lock button
2. effect status
3. additional information button
4. effect version and size

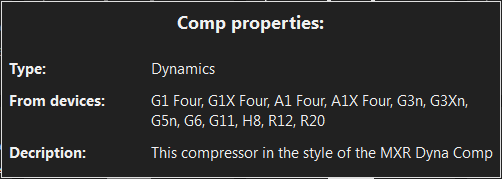

When you right-click on an effect, a window appears with a description of the effect
 | Effects that are not supported by the current device model are grayed out and cannot be selected |
In normal mode, effect icons can have the following states:
 | The effect is installed |
 | The effect is not installed or selected |
 | The effect is marked for writing |
 | The effect is marked for updating |
 | The effect is marked for deletion |
In firmware update mode and when no device is connected, effect icons can have two states:
 | Effect selected for writing |
 | Effect not selected |
 | The effect card view when an update is available |
5. Bottom panel
The bottom panel contains the following elements:
 | The name of the current effects list file. If changes to the list are not saved, the name will be preceded by a * character |
 | Number/size of effects marked for writing |
 | Number/size of effects marked for deletion |
 | Number/amount of freed space after writing effects marked for updating |
 | Size of all selected effects and file system size (FS) |
 | Button for selecting the effect icon mode, grouped by type (Ctrl+1), the active mode button is highlighted |
 | Button for selecting the effect icon mode as a general list (Ctrl+2) |
 | Button for selecting the table mode (Ctrl+3) |
 | Effect window zoom slider (Ctrl++, Ctrl+-, Ctrl+mouse wheel). The zoom can be selected from 50% to 150% and is saved independently for each viewing mode |
